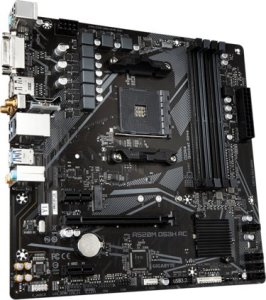

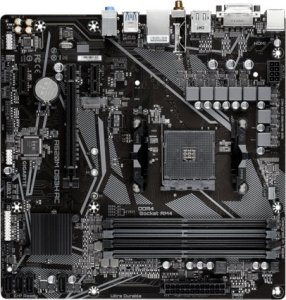

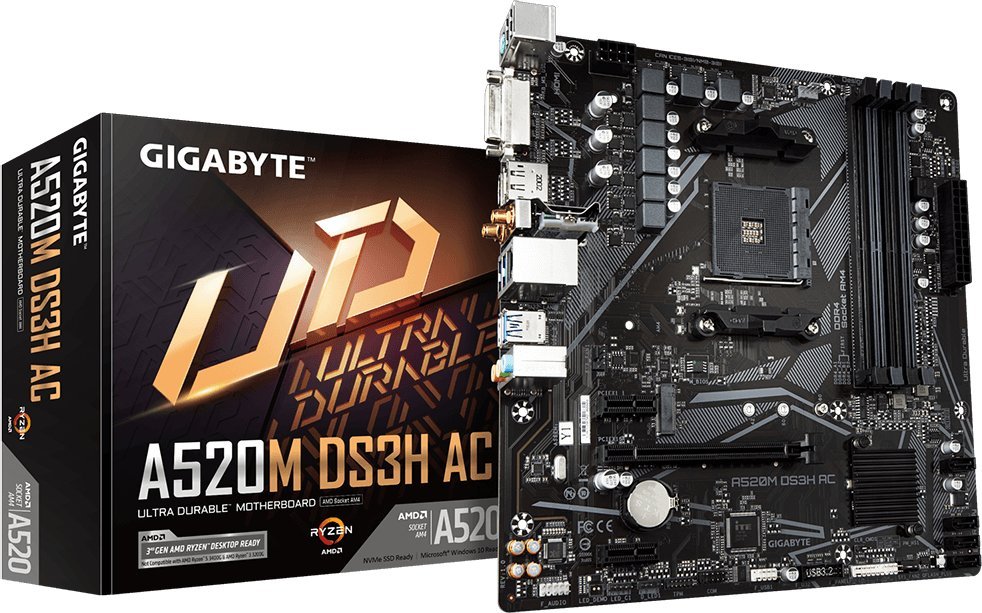

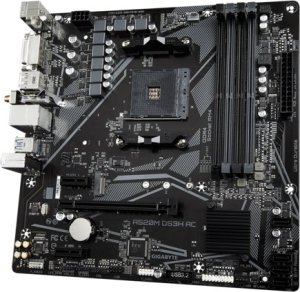

GIGABYTE A520M DS3H AC – Micro-ATX Motherboard with AM4 Socket

The GIGABYTE A520M DS3H AC is an excellent choice for users seeking a reliable and efficient foundation for their computer builds. With its Micro-ATX form factor and support for AMD processors featuring the AM4 socket, including the Ryzen 3000 and 5000 series, this motherboard is well-suited for both home and office applications.

Performance of the AMD A520 Chipset

Equipped with the AMD A520 chipset, the GIGABYTE A520M DS3H AC delivers solid performance and supports modern technologies, making it a great option for those who need a dependable solution for everyday tasks and gaming.

DDR4 Memory Support Up to 192 GB

This motherboard supports DDR4 memory, allowing for a maximum capacity of 192 GB and speeds of up to 3200 MT/s, which can be overclocked to 4400 MT/s. With four DIMM slots available, users can easily manage their memory, tailoring the system to their specific requirements.

Disk Interfaces: M.2 and SATA III

The GIGABYTE A520M DS3H AC features a variety of disk interfaces, including one M.2 PCIe 3.0 slot and four SATA III connectors. This versatility enables the connection of both HDDs and SSDs, enhancing the system's performance and responsiveness.

Expanded PCIe Expansion Capabilities

This motherboard comes with one PCIe 3.0 x16 slot for a graphics card and two PCIe 3.0 x1 slots for additional expansion cards. This design allows users to easily upgrade their systems with new components, boosting overall functionality.

Built-in USB Connectors and Output Ports

The I/O panel is equipped with four USB 3.0 ports and two USB 2.0 ports, providing convenient access to peripheral devices. Additionally, the motherboard includes a Gigabit Ethernet port for fast network connections.

Connectivity Options: Gigabit Ethernet and Wi-Fi 5

The GIGABYTE A520M DS3H AC supports Wi-Fi 5 (802.11ac) and Bluetooth, offering flexibility in connectivity. With these features, users can enjoy stable and speedy wireless network access.

Technical Specifications of GIGABYTE A520M DS3H AC

• Chipset Manufacturer: AMD
• Chipset Type: A520
• Processor Socket: AM4
• Supported Processors: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
• Memory Type: DDR4
• Maximum Memory Capacity: 192 GB
• Memory Slot Type: DIMM
• Maximum Memory Speed (Standard): 3200 MT/s
• Maximum Memory Speed (OC): 4400 MT/s
• Number of Memory Slots: 4
• PCIe x16 Slots: 1
• PCIe x1 Slots: 2
• M.2 Slot: 1 (PCIe 3.0 x4)
• SATA Connectors: 4 (SATA III)
• External USB 3.0 Ports: 4
• External USB 2.0 Ports: 2
• Gigabit Ethernet Port: 1
• Wi-Fi Support: Yes (Wi-Fi 5, 802.11ac)
• Bluetooth Support: Yes
• Fan Connectors: 3 (4-pin PWM)
• RGB Connectors: 1x Digital RGB (3-Pin 5VDG), 1x RGB (4-Pin 5050 12VGRB)
