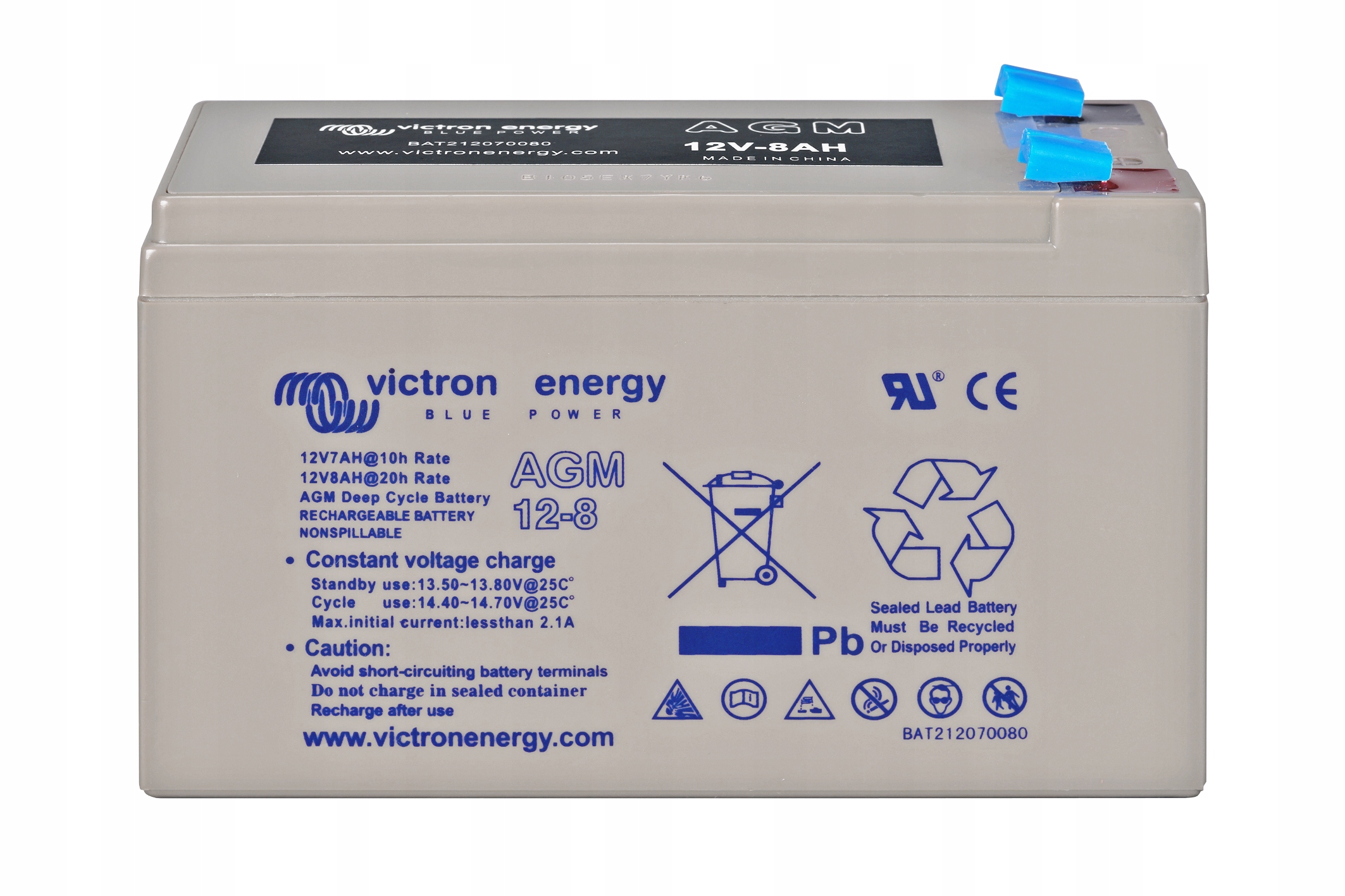

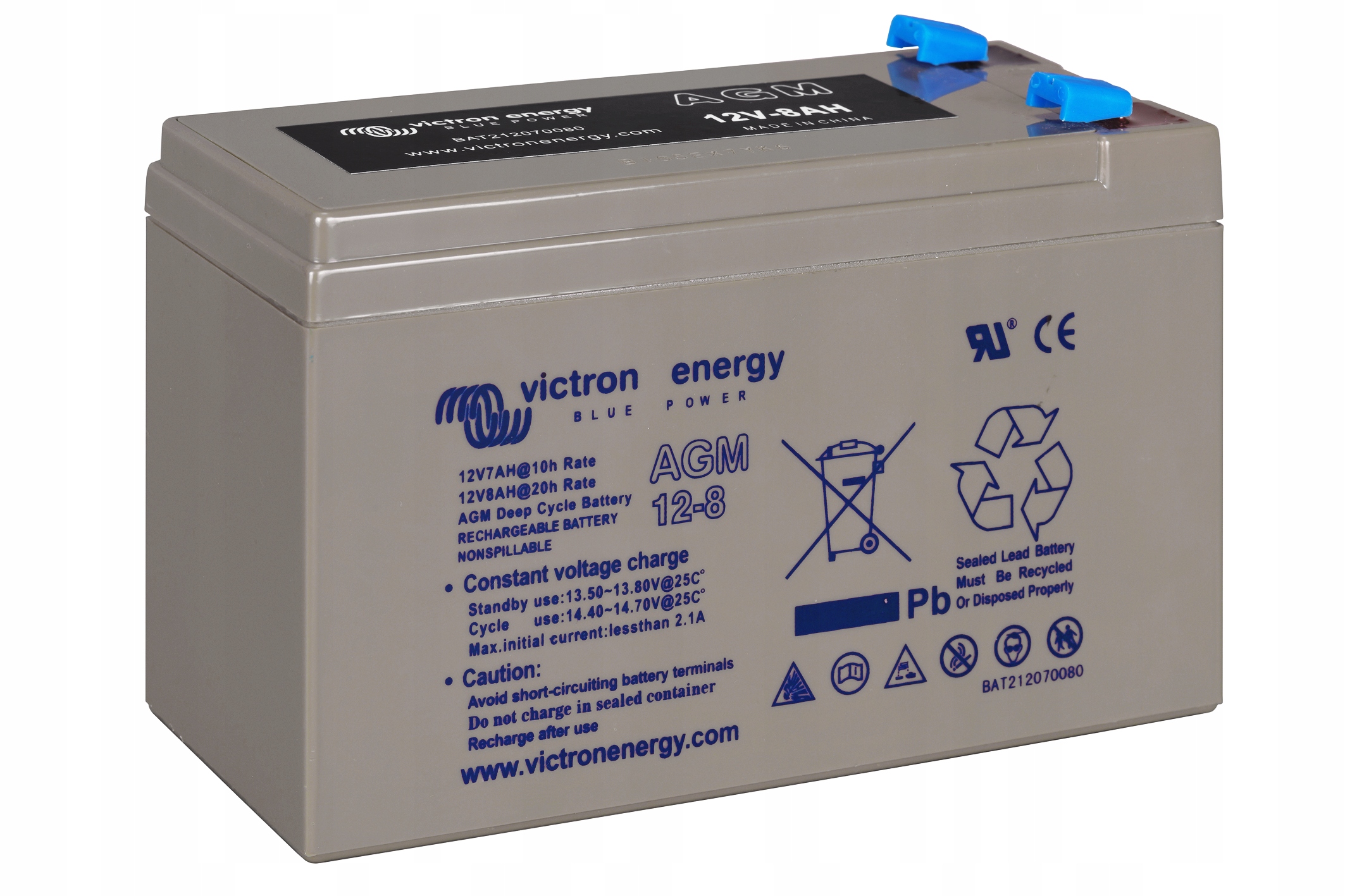

Victron Energy Victron Energy 12V/8Ah AGM Deep Cycle Batt.

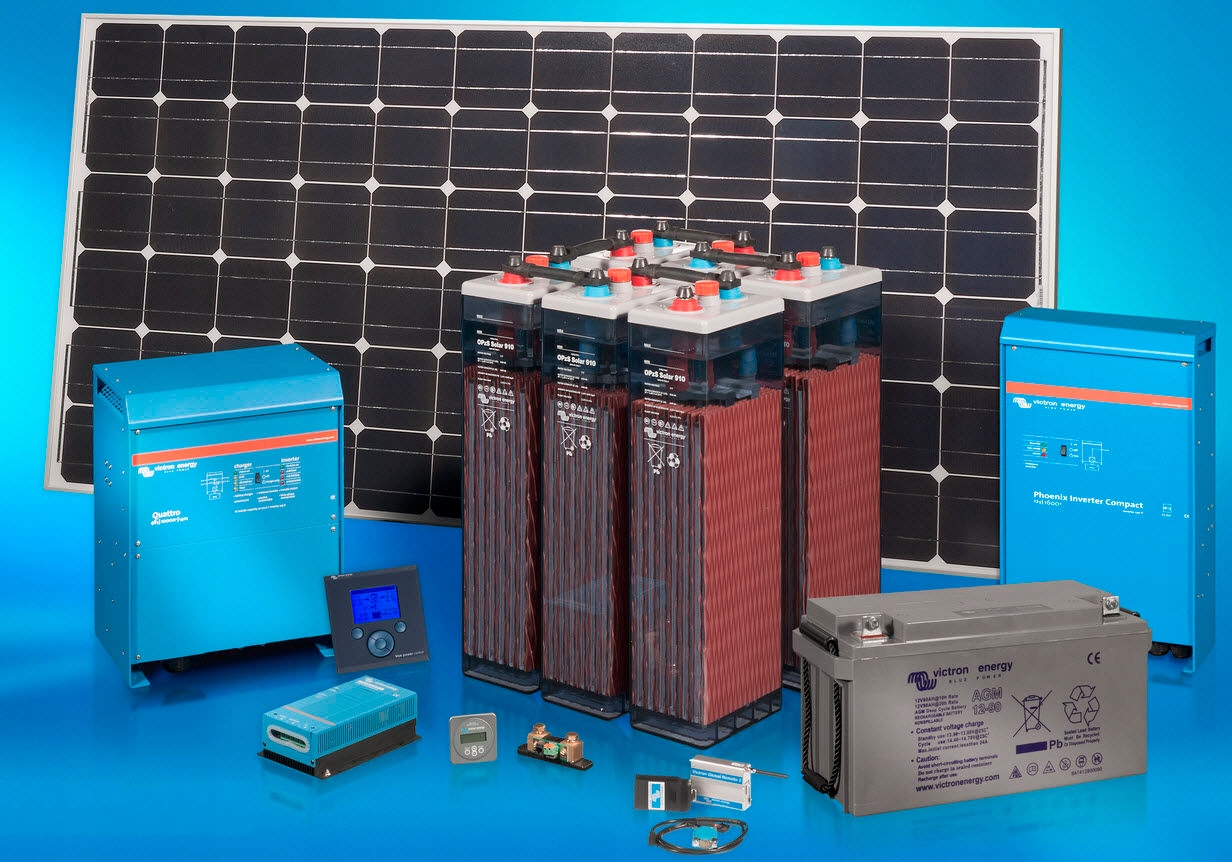

AGM Battery8 Ah 12V Victron Energy Deep Cycle Victron Energy is a well-known global company that offers a wide range of photovoltaic solutions based on batteries. It is renowned for its high quality and is a benchmark in the world of battery and photovoltaic quality standards. The AGM Deep Cycle battery series provides unprecedented resistance to deep discharges and regular cyclic operation, e.g. in photovoltaic systems. Through the use of high-purity materials and calcium-lead grids, Victron Energy AGM batteries guarantee low self-discharge and high durability. The batteries comply with CE and UL specifications and are housed in fire-resistant ABS containers.

AGM technology batteries are dedicated wherever there is a high load (fast discharge time), e.g. for systems with large voltage converters, motors, electric carts, and similar devices. AGM batteries used in cyclically operating photovoltaic systems can last for 7 to 10 years depending on the intensity of their use and provided that they do not exceed 400 discharge cycles to 80% capacity.

Parameters / Model Victron Energy 8 Ah 12V

• Operating voltage [V] 12V
• Capacity [Ah] 8 Ah
• Charging voltage cyclic operation [V] 14.2V – 14.6V
• Charging voltage standby operation [W] 13.5V – 13.8V
• Storage voltage [V] 13.2V – 13.5V

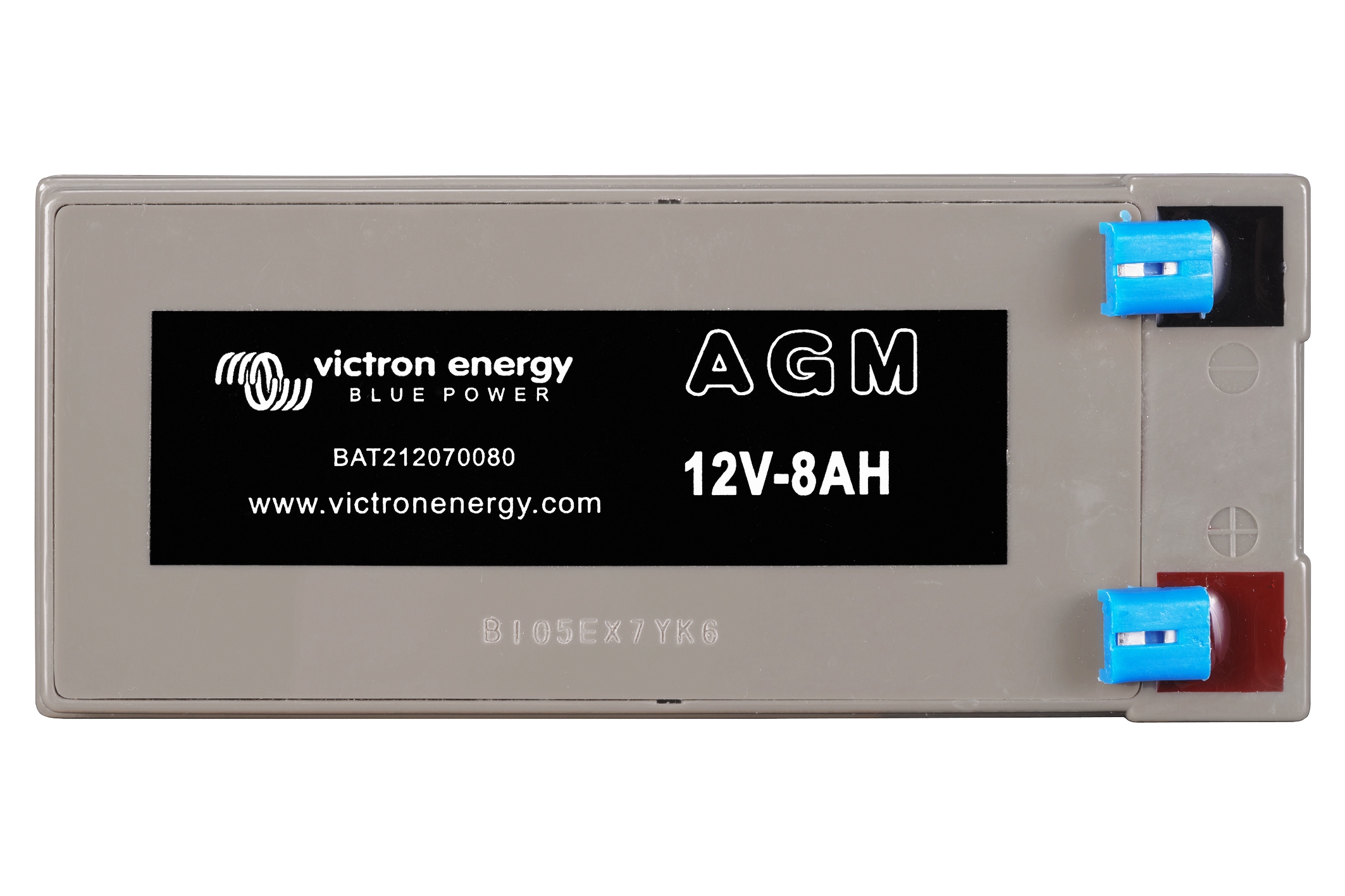

INSTALLATION AND DIMENSIONS

• Dimensions WxHxD [mm] 151x65x101
• Weight [kg] 2.5 kg

Battery endurance

• 1500 cycles at 20% discharge
• 600 cycles at 50% discharge
• 400 cycles at 80% discharge
• projected lifespan of 12 years in FLOAT mode
