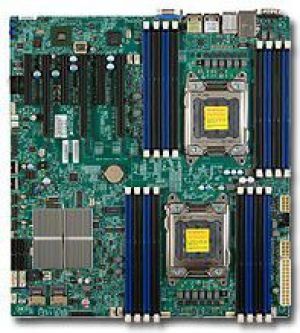

SuperMicro X9DRi-F

C602

• 1066 MHz
• 1333 MHz
• 1600 MHz

2x SATA 3.0 ports (6Gbps) with RAID 0, 1, 5, 10
8x SATA 2.0 ports (3Gbps) with RAID 0, 1, 5, 10

G200 (Winbond® WPCM450 BMC with graphic controller)

2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
1x VGA port
PS/2 Keyboard/Mouse port
2x Fast UART 16550 ports: 1 rear and 1 header
1 DOM (Disk on Module) power connector

CPU
Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
5 Phase-switching voltage regulator

FAN
8x 4-pin fan headers (up to 8 fans)
8x fans with tachometer monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 8x Fan Connectors
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI

LED
CPU / System Overheat LED

Other Features
Chassis intrusion detection
Chassis intrusion header
SDDC Support

BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.2
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3
UEFI

12" x 13" (30.5cm x 33.2cm)

IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
SuperDoctor® III
Watch Dog
NMI
Optional IPMI 1.5 / 2.0
