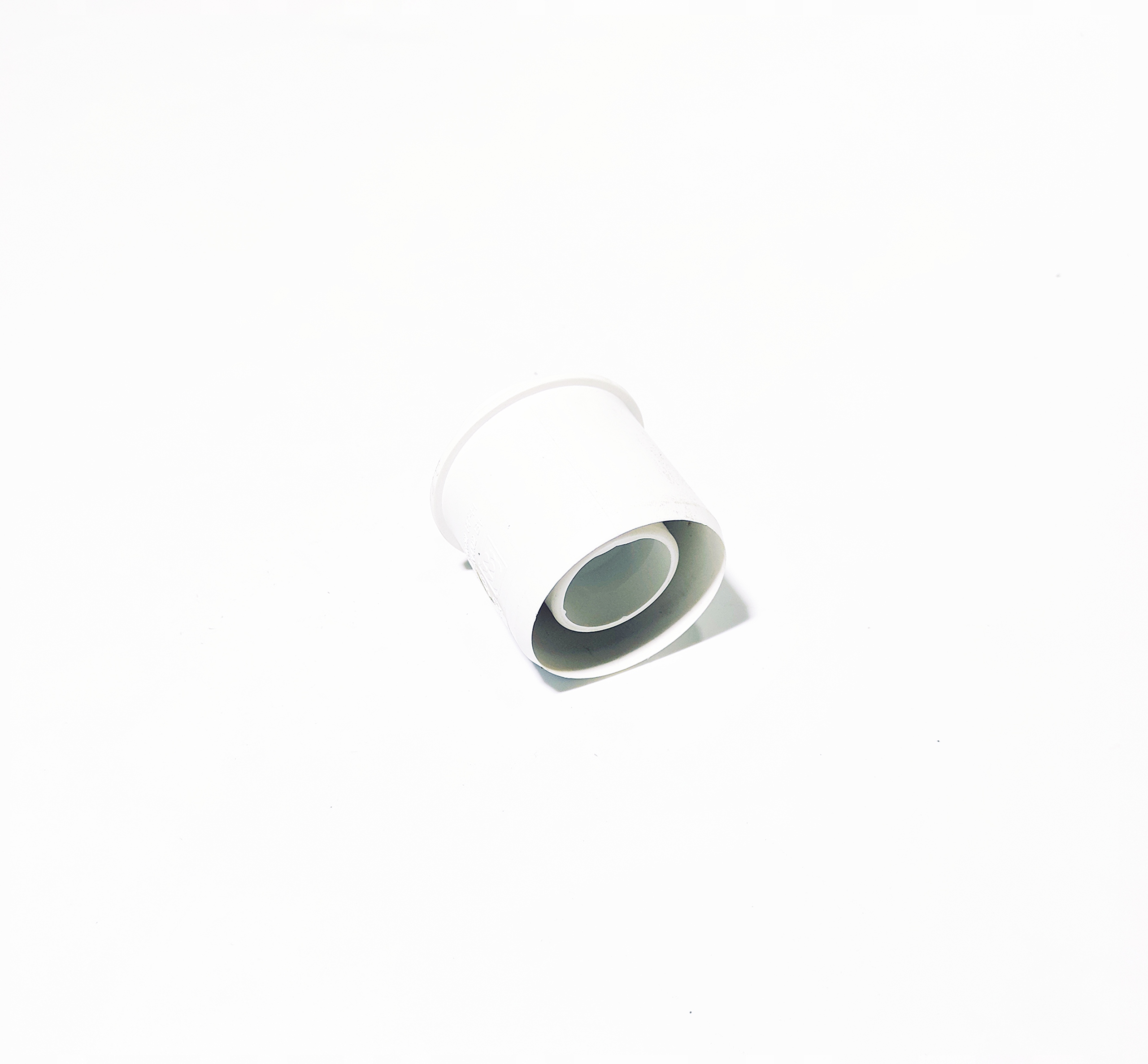

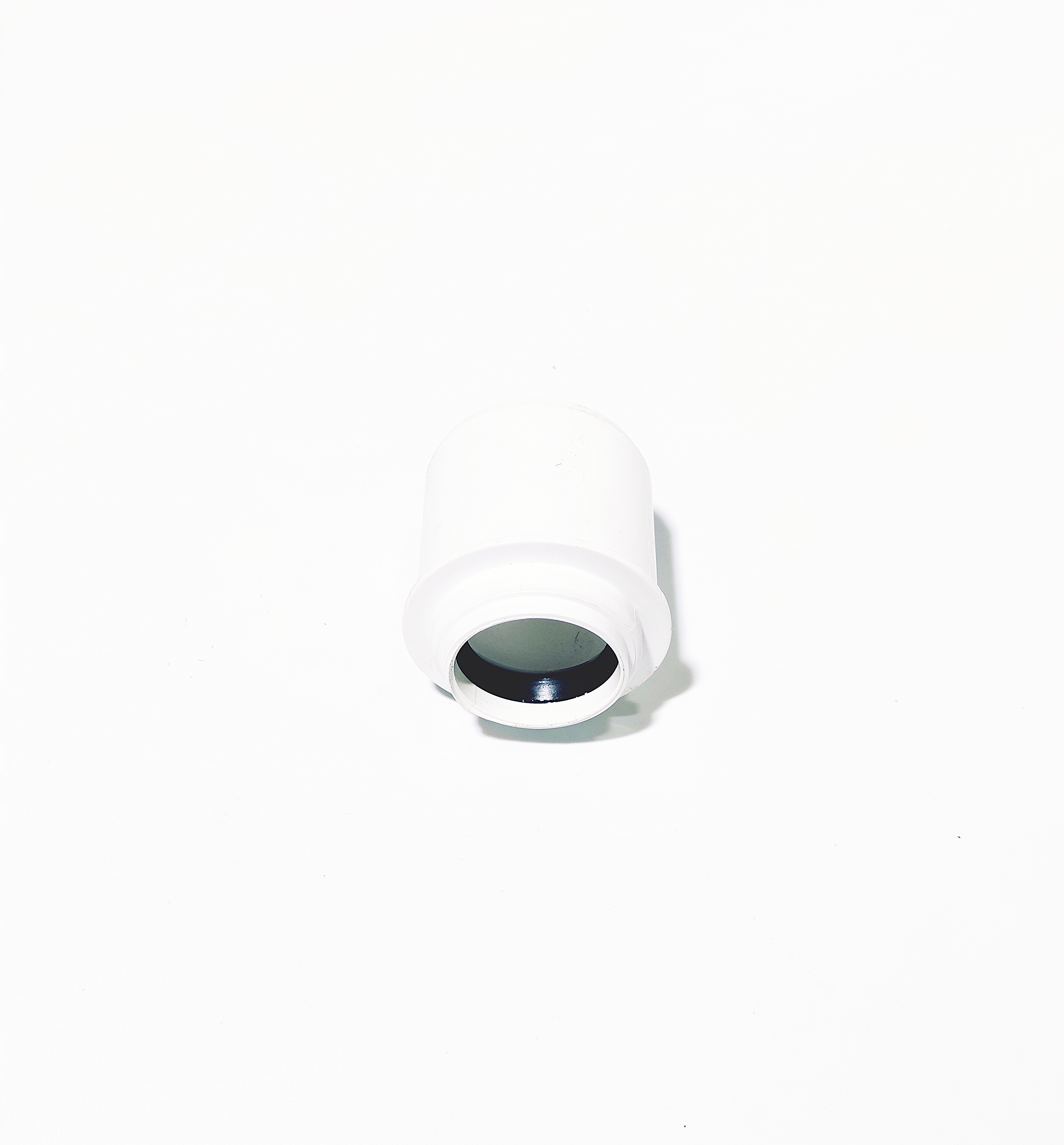

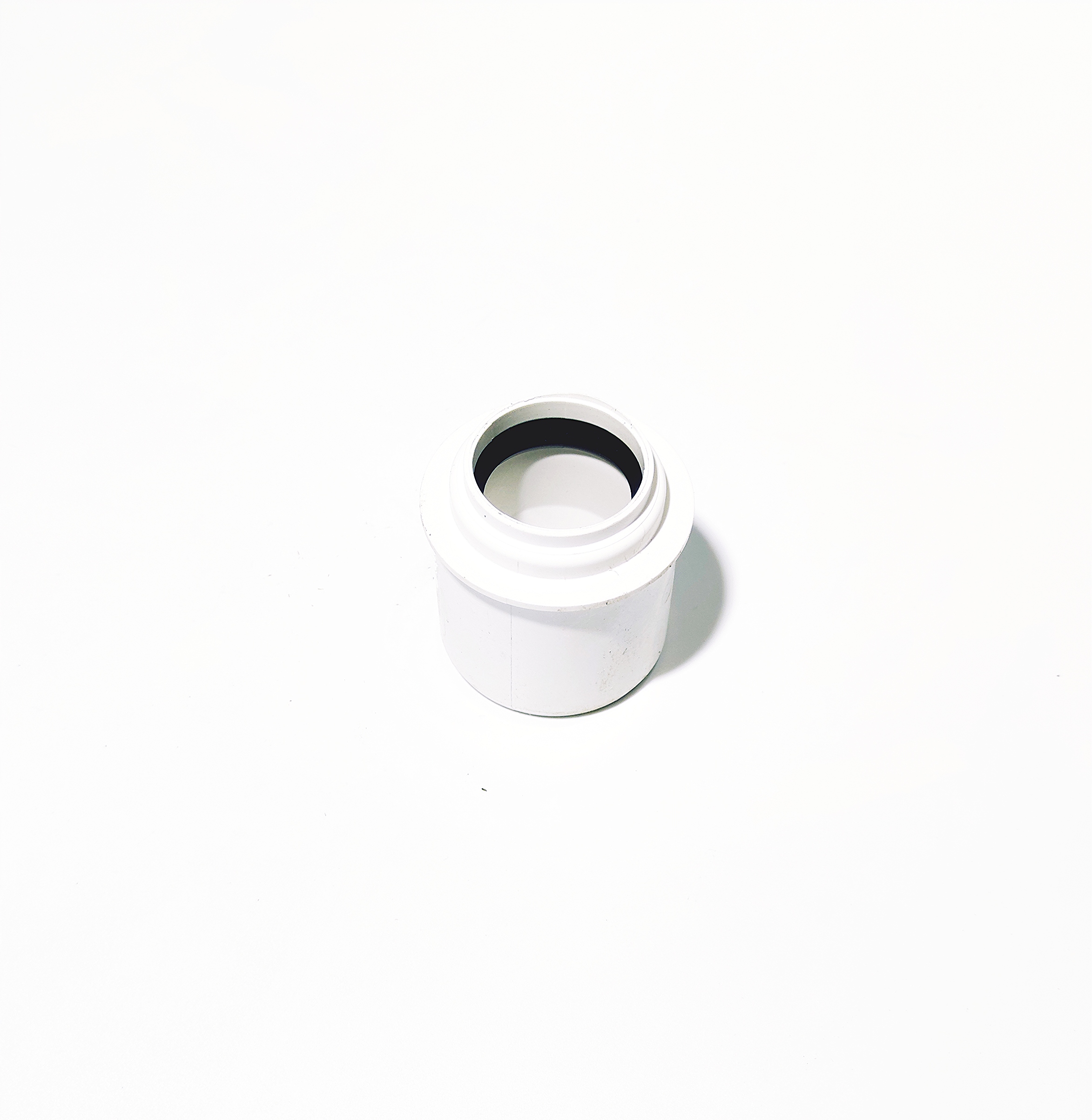

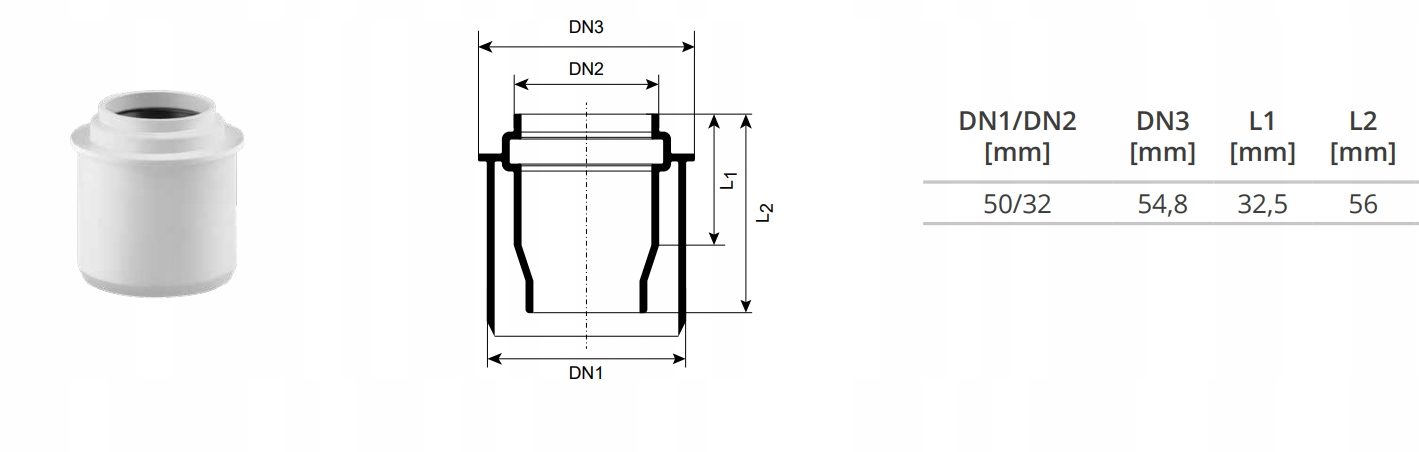

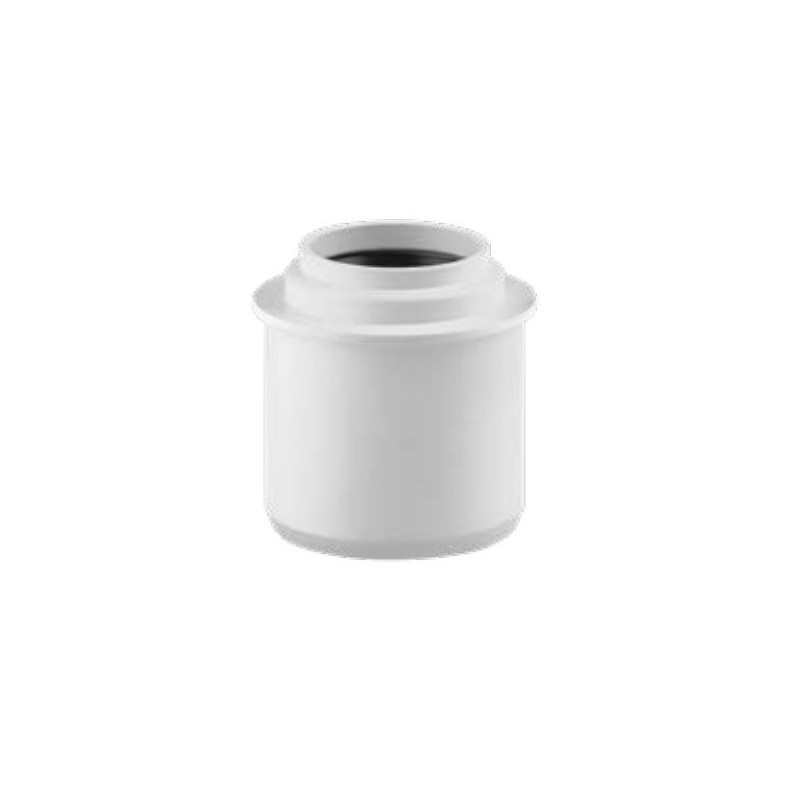

Reducing sewage pipe short 50/32mm HTPLUS Magnaplast

INFORMACJE TECHNICZNE:

Maksymalna temperatura ścieków:

• 90°C - ciągły przepływ
• 95°C - krótkotrwały przepływ (do 15 minut)

Odporność na uderzenia w niskich temperaturach: Do -10°C (możliwy montaż w zimie)

Uszczelka: jednowarstwowa z SBR, fabrycznie zamontowana w rurach i kształtkach

Hermetyczność połączeń: Do 0,5 bar

Odporność chemiczna: Transport i odprowadzanie ścieków o pH 2-12

Klasa odporności ogniowej: B2 (zgodnie z DIN 4102)

Gęstość: 0,95 g/cm3

Wytrzymałość na uderzenia: TIR

HTplus internal low-noise PP sewerage

HTplus is a complete system of pipes and fittings for sewage that meets rigorous requirements of a low-noise system. It is made of a material with an improved recipe based on polypropylene and mineral components. It meets all the requirements of a modern, ecological sewage system.

Certificates:

• Hygienic Approval PZH,
• National Technical Assessment ITB,
• Declaration of Properties for Use,
• Conformity Certificate.

Application

The HTplus system is designed for the construction of internal sewage and rainwater systems within buildings, as well as for ventilation. The fire-resistant stabilized material used in the system exhibits high resistance to various, including aggressive, chemicals and sewage. Therefore, it can be successfully used, among other things, in the chemical and pharmaceutical industry.

HTplus pipes and fittings withstand the continuous flow of hot water (up to 90ºC) and short-term flow (up to 95ºC), making them suitable for use in households and anywhere where hot sewage is discharged.

The mineral components in HTplus products contribute to a significant reduction in noise, as confirmed by tests conducted by the Fraunhofer Institute in Stuttgart. Therefore, the HTplus system exhibits acoustic properties that surpass the requirements of DIN 4109. This makes it suitable for use in buildings where noise protection is important.

Advantages:

• Unique centimeter scale print directly on the pipes
• Complete system of pipes and fittings in a wide range of diameters: from DN 32 to DN 160
• Special fittings (e.g. cleaners, four-way connectors, connectors for connection to cast iron)
• Easy and fast installation - low product weight
• Solid wall cross section with improved recipe
• Compatibility with other internal sewerage systems
• High aesthetic quality
• Low mechanical shock resistance
• 100% recycling of pipes and fittings

The product photos are original
