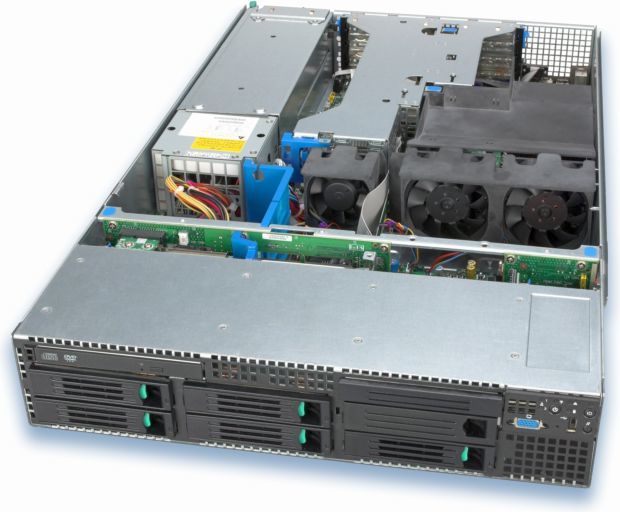

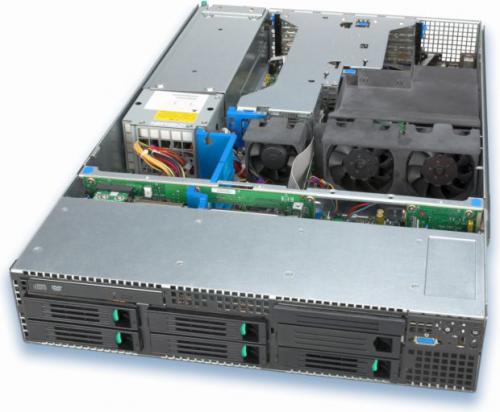

Intel Server Board S5000PAL / IntelŽ Server Chassis SR2500 2 BRP 2U integrated platform. Includes Intel Server Board S5000PAL, 2U chassis with non-redundant cooling, one (of 2) power supply modules, backplane, two risers and Passive Midplane.
Specyfikacja techniczna
 |
- Front Bezel Features: Power LED, hard-drive activity LED, two network activity LEDs, system-ID LED, system-status LED; power on/off button, system reset button, system ID button, and NMI switch; optional IntelŽ Local Control Panel for monitoring and control of the server from the front panel
- Dimensions: 3.44'' x 16.93'' x 27.95''
- Drive Bays Standard: 5 x 3.5'' hot-swap SAS/SATA Flex-bay for optional 6th SAS/SATA HDD or 3.5� Tape-drive Optional slim-line Optical Drive/USB-Floppy
- Front Connectors: 1 USB and 1 Video connector
- Hot Swap Drive Bays: Up to 6 SAS or SATA drive-bays
- Integrated Graphics: ATI* 16MB memory
- Integrated LAN: 2 x Intel PRO/1000 EB Ethernet Connections
- Integrated RAID:
- Integrated SCSI:
- Integrated SAS: Passive SAS/SATA Midplane.
- Integrated SATA: Passive SAS/SATA Midplane.
- Power Supply: 750-watt, dual-line cord 1+1 PFC (Fully redundant configuration requires a second power module, order code ASR2500PS)
- Serial Port:
- Supported Operating System: Microsoft* Windows* Server 2003, Microsoft Windows 2000 Advanced Server, Red Hat* Linux*, SUSE* LINUX*, and Novell* NetWare*
- System Cooling: Support for three non-redundant system fans and two power supply module fans
- Total Slots: 5
- USB Connections: 2
|
