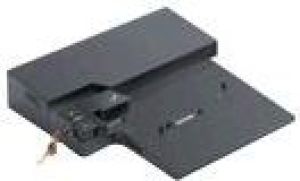

Lenovo ThinkPad Advanced Dock

ThinkPad Advanced Dock - Europe f. Z60t, Z60m, T60p, R60

Product Description Lenovo ThinkPad Advanced Dock - docking station

Device Type Docking station

Dimensions (WxDxH) 36.1 cm x 37.3 cm x 7.2 cm

Weight 2.8 kg

Localisation Europe

Manufacturer Warranty 1 year warranty

Details

General

Device Type Docking station

Width 36.1 cm

Depth 37.3 cm

Height 7.2 cm

Weight 2.8 kg

Localisation Europe

Expansion / Connectivity

Expansion Bays Total (Free) 1 ( 1 ) x front accessible

Expansion Slots Total (Free) 1 ( 1 ) x xD-Picture Card

1 ( 1 ) x SD Memory Card

1 ( 1 ) x CompactFlash Card

1 ( 1 ) x SmartMedia Card

1 ( 1 ) x Memory Stick

1 ( 1 ) x PCI Express - half-length

Interfaces 5 x Hi-Speed USB - 4 PIN USB Type A

1 x serial - RS-232 - 9 pin D-Sub (DB-9)

1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)

1 x keyboard / mouse - generic - 6 pin mini-DIN (PS/2 style)

1 x microphone - input - mini-phone 3.5mm

1 x headphones - output - mini-phone stereo 3.5 mm

Audio - SPDIF

1 x display / video - VGA - 15 pin HD D-Sub (HD-15)

1 x display / video

1 x docking / port replicator

1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45

1 x modem - phone line - RJ-11

Manufacturer Warranty

Service & Support 1 year warranty

Service & Support Details Limited warranty - parts and labour - 1 year

Miscellaneous

Features Locking device keyhole, docking security

Power

Power Device Power supply - internal

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 35 °C
