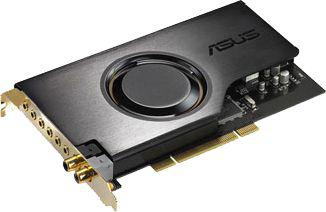

Karta dźwiękowa Asus XONAR D2

Device Type

Sound card

Enclosure Type

Plug-in card

Interface Type

PCI

Signal Processor

ASUS AV200

Sound Output Mode

7.1 channel surround

DAC Data Width

24-bit

Sample Rate

44.1 kHz (min) - 192 kHz (max)

Signal-To-Noise Ratio

118 dB

Features

Karaoke, Dolby Headphone technology, Dolby Virtual Speaker technology, DTS Interactive, Magic Voice, Smart Volume Normalizer, FlexBass, Xear 3D Virtual Speaker Shifter

Compliant Standards

DirectSound, EAX 2.0, EAX 1.0, A3D 1.0, ASIO 2.0, Dolby Digital Live, DTS Connect, Dolby Pro Logic IIx, DTS Neo:PC, High Definition Audio

Audio Modes

Record : 24-bit 192 kHz
Playback : 24-bit 192 kHz

Interfaces

1 x audio - line-out - mini-phone 3.5mm
1 x audio - line-out (side surround) - mini-phone 3.5mm
1 x audio - line-out (centre/subwoofer) - mini-phone 3.5mm
1 x audio - line-out (back surround) - mini-phone 3.5mm
1 x audio - line-In - mini-phone 3.5mm
1 x microphone - input - mini-phone 3.5mm
1 x audio - SPDIF output - TOSLINK
1 x audio - SPDIF input - TOSLINK
1 x MIDI - input / output - 4 PIN MPC
2 x audio - line-In - 4 PIN MPC
On supplied cable : 1 x MIDI - input - 5 PIN mini-DIN
On supplied cable : 1 x MIDI - output - 5 PIN mini-DIN

Compatible Slots

1 x PCI

Cables Included

1 x audio (optical) adapter
1 x audio (optical) cable
1 x audio cable
1 x MIDI adapter cable
1 x MIDI panel

Software

Drivers & Utilities, CyberLink PowerDVD 7, Cakewalk SONAR LE, Ableton Live Lite, Cakewalk Project5 LE, Cakewalk Dimension LE

OS Required

Microsoft Windows XP, Microsoft Windows XP Media Center Edition 2005, Microsoft Windows Vista

Peripheral / Interface Devices

CD-ROM, adjacent PCI slot

System Requirements Details

- 1.4 GHz - RAM 256 MB - HD 60 MB
