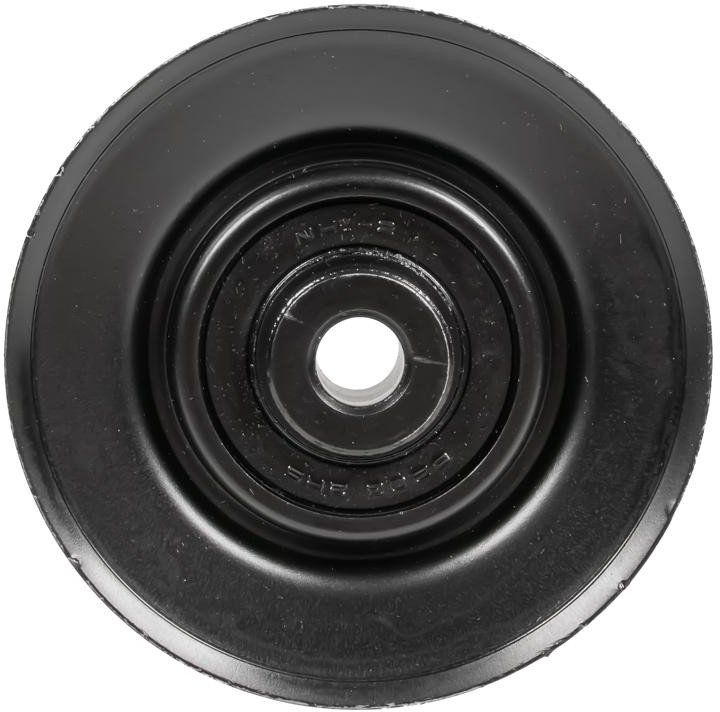

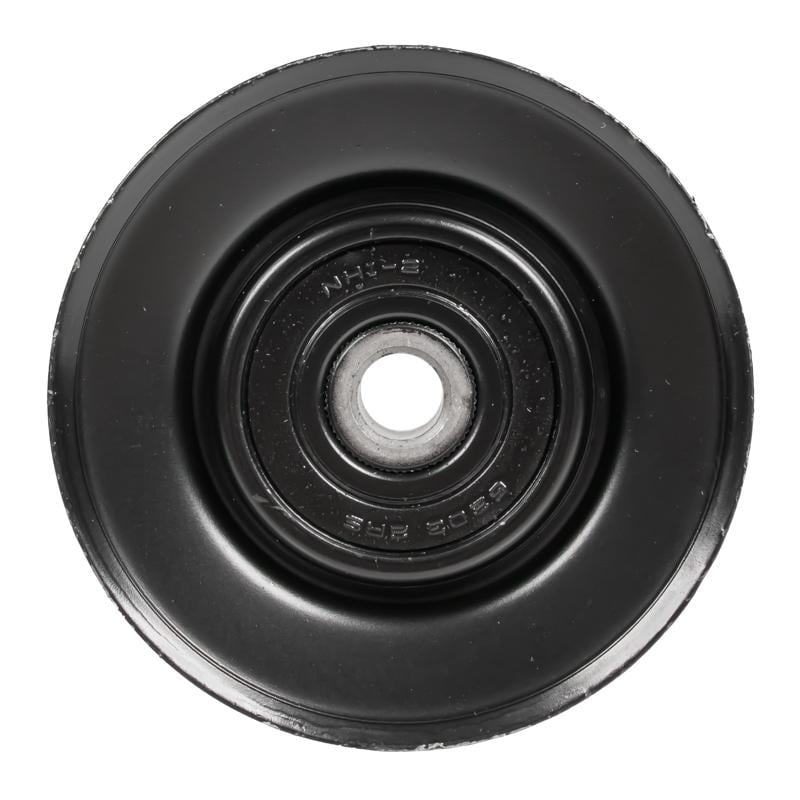

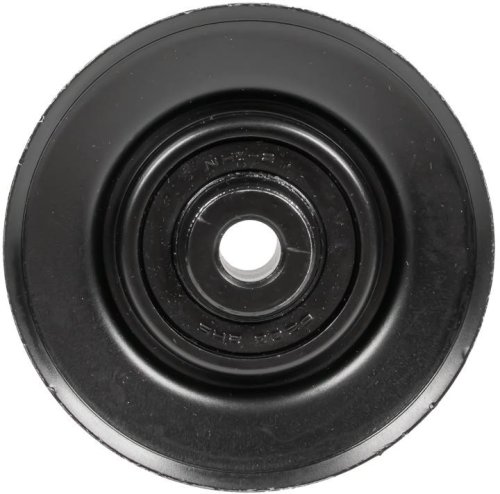

Koło Pasowe Mtd Seria 500; Nx09 Autodrive Ro15602

Koło pasowe MTD seria 500; NX09 Autodrive

Wymiary:

Średnica zewnętrzna(A): 78 mm

Średnica wewnętrzna(B): 52 mm

Wysokość całkowita(C): 24 mm

Szerokość paska(D): 13 mm

Średnica otworu(E): 9,5 mm

nr katalogowy
RO15602,
MTD: 756-0236, 7560236

modele
BlackEdition 180/92 / 13AT493E615 (2008)
Black-Line B 150/92 A / 13A3488E683 (2007)
Bolens BL 200/105 H / 13A7491N684 (2007)
Bolens BL 175/92 H / 13BN495E484 (2009)
Bolens BL 155/92 A / 13A3481E684 (2006)
Cast TRPH 105/18 / 13BQ517N669 (2003)
Celebration 105 H / 13AV488N686 (2005)
Celebration 25/105 H / 13CI513N686 (2010)
Cubcadet CC 1015 RD-E / 13BV51CE603 (2008)
Cubcadet CC 1000 RD / 13B951CN603 (2009)
Cubcadet CC 1024 RD-J / 13DI51AJ603 (2011)
Cubcadet CC 1016 RD-E / 13DG51AE603 (2011)
Cubcadet CC 1024 RD-N / 13DI51AN603 (2011)
Cubcadet CC 1020 RD / 13AE51CN603 (2005)
Edt EDT 135-92 / 13AA509E610 (2002)
Efco Kommand 92/15.5 H / 13AM71KE637 (2011)
Efco Kommand 105/22H Plus / 13BF49KN437 (2011)
Fleurelle Budget AMH 1303 / 13A1489E619 (2005)
Fleurelle Budget AMH 1303 / 13A1489E619 (2004)
Gutbrod GLX 122 RHL / 13AE516J690 (2008)
Gutbrod JLX 92 RH / 13AD71GE690 (2010)
Gutbrod GLX 92 SHL-SK / 13AF51GI490 (2009)
Gutbrod GLX 105 RHL / 13AT516N690 (2002)
Gutbrod GLX 105 RA / 13BW506N696 (2007)
Gutbrod SLX 107 SH / 13AO51GG690 (2011)
Gutbrod GLX 105 RHL-SK / 13CF51GN490 (2011)
Gutbrod GLX 92 RA / 13AA506E690 (2002)
Gutbrod GLX 107 SALK / 13BI506G690 (2003)
Gutbrod GLX 122 RHL / 13AU516J690 (2004)
Gutbrod GLX 92 SHL / 13BP516I690 (2006)
Gutbrod GLX 105 RHL / 13BP516N690 (2006)
Gutbrod GLX 105 RA / 13CV50GN690 (2009)
Gutbrod GLX 92 RH / 13CH516E690 (2005)
Gutbrod GLX 105 RA / 13CD50GN490 (2011)
Gutbrod GLX 92 RA / 13CM506E690 (2005)
Gutbrod GLX 105 RHL-SK / 13AF51GN490 (2009)
Gutbrod GLX 105 RH / 13DJ51GN490 (2011)
Gutbrod GLX 92 RHLK / 13BG51GE690 (2010)
Lawnflite 908 / 13BQ509N611 (2004)
Lawnflite 808 / 13BV509G611 (2006)
Lawnflite 705 / 13CV509E611 (2007)
Lawnflite 909 / 13AE509J611 (2005)
Massey Ferguson MF 41-18 RH / 13AJ716N695 (2011)
Massey Ferguson MF 36-22 RD / 13CF51CE495 (2009)
Massey Ferguson MF 41-24 RD / 13CI51CN695 (2010)
Massey Ferguson MF 41-22 RD / 13CF51CN695 (2011)
Massey Ferguson MF 48-25 RD / 13BI51CJ695 (2008)
Massey Ferguson MF 36-22 RD / 13CF51CE495 (2010)
Massey Ferguson MF 48-23 RD / 13AB51CJ695 (2007)
Motec GL 13,5-92 H / 13AH493E640 (2009)
Motec CC 1023 RD / 13AB51CJ630 (2006)
Motec GL 13,5-92 H / 13BH493E640 (2011)
Mtd JN 200 AT / 13A7488N622 (2007)
Mtd LE 135 H / 13AH713E600 (2010)
Mtd JE 135 A / 13A1483E678 (2007)
Mtd 160/92 H / 13AT713E678 (2011)
Mtd RH 150/92 B / 13AA488E676 (2004)
Mtd JN 135 AT / 13A1488N622 (2007)
Mtd SN 170 A / 13AP518N670 (2002)
Mtd SG 155 A / 13AP508G678 (2002)
Mtd 180/92 HT / 13A3498E676 (2006)
Mtd JE 180 H / 13BT493E676 (2009)
Mtd SN 210 A / 13BT508N678 (2003)
Mtd RH 170/105 H / 13AW493N676 (2006)
Mtd SN 155 H / 13BA518N670 (2004)
Mtd JN 150 H / 13AM498N678 (2005)
Mtd RH 150/92 B / 13AM488E676 (2005)
Mtd 175/105 H / 13A3497N676 (2008)
