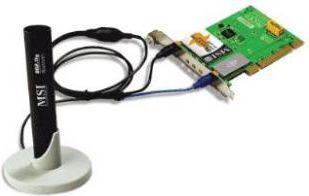

Karta sieciowa MSI Dual Net Card Wireless+Bluetooth (935-6852-002)

Wireless Data Rates IEEE 802.11g(auto-fallback): • OFDM: 54,48,36,24,18,12,9 and 6 Mbps IEEE 802.11b(auto-fallback): • CCK:11,5.5Mbps • DQPSK:2 Mbps • DBPSK:1 Mbps Compliant IEEE 802.11b/g Dimension 119.9mm x 83.15 mm Temperature Storage Temperature : -20°C ~ 100°C Operating Temperature : 0°C ~ 60°C Power Consumption • Initialization Current <= 130 mA • Receive Mode <=240 mA • Transmit Mode <= 440mA Auto-Gain Control Yes Channel Frequency 2.4 GHz ~ 2.4835 GHz 14 Channels Channel Power • EIRP <=20 dBm • Output Power(Before Antenna) = 14 ± 1 dBm(IEEE 802.11g) • Output Power(Before Antenna) = 17 ± 1 dBm(IEEE 802.11b) Wireless Transmission Power 64/128-bit H/W interface USB Bluetooth Spec Compliance USB 1.1 Throughput Around 723 Kbps(data channels) Operating Volt. 5V from PCI interface Spread Spectrum FHSS (Frequency Hopping Spread Spectrum) Output Power Class Bluetooth Power Class 2 Output Power 4 dBm(Max) Antenna Gain 3.0dBi(Max) Operating System Windows XP, Windows 2000,Windows ME, Windows 98SE Certification Information FCC,CE,Wi-Fi+WPA,WHQL
