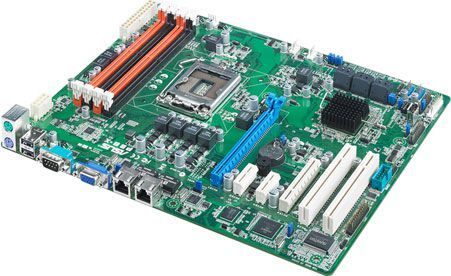

Asus P8B-X ATX/Xeon E3/C202/4 xDDR3/6xSATA RAID (90-MSVDG0-G0UAY00Z)

Specyfikacja techniczna

Processor / System Bus:
1 x Socket LGA1155
Intel® Xeon® E3-1200 Processor Family
Intel® Core™ i3-2100 Processor Family
Intel® Core™ G8X0 Processor Family
Intel® Core™ G6X0 Processor Family Processor
Core Logic Intel® C202 Chipset

Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
DDR3,1333/1066,UDIMM,with ECC
Memory Size :

Expansion Slots
Total Slot : 6
Slot Location 1 : PCI 32bit/33MHz
Slot Location 2 : PCI 32bit/33MHz
Slot Location 3 : PCI-E x8 (X4 Link)
Slot Location 4 : PCI-E x1
Slot Location 5 : PCI-E x1
Slot Location 6 : PCI-E x16

Form Factor: 12 " x 9.6 " Inch

ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)

Storage
SATA Controller :
Intel® C202
6 x SATA2 3Gb/s ports
Intel® Rapid Storage Technology(RST) (For Windows Only)
(Support Software RAID 0,1,5,10 )

Networking: 2 x Intel® 82574L

Graphic: XGI® Z9s with 64MB VRAM

On Board I/O
1 x TPM header
1 x PSU Power Connector , 24-pin ATX power connector + 8-pin ATX 12V power connector
1 x USB connector
2 x USB pin header , Up to 4 Devices
5 x Fan Header , 4pin
1 x Chassis Intruder
1 x Serial Port Header

Back I/O Ports:
1 x External Serial Port
2 x External USB Port
1 x VGA Port
2 x RJ-45
1 x PS/2 KB/Mouse

EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)

Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)

Accessories
Gift Box Pack :
1 x User's Guide
1 x Support CD
1 x I/O Shield
6 x SATA 3G Cable(s)
1 x Plate for LGA1155
Bulk Pack :
1 x User's Guide
1 x Support CD
1 x I/O Shield
1 x Plate for LGA1155

Product SKUs
Standard Gift Box Pack
Standard Bulk Pack

Monitoring
CPU Temperature
Fan RPM
