Access Point Cisco AIR-AP1231G-E-K9 1231G 802.11g

Mega Promocja !

Rabat nawet do 30 % !!!

Nie zwlekaj !!! Promocja ważna do 05.12.2008

Szczegóły promocji: [email protected]

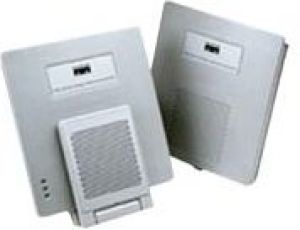

Product Description Cisco Aironet 1231 - radio access point

Device Type Radio access point

Enclosure Type External

Dimensions (WxDxH) 16.7 cm x 18.4 cm x 4.2 cm

Weight 0.7 kg

Localisation Europe

Processor 1 x IBM PowerPC 405 200 MHz

RAM Installed ( Max ) 16 MB

Flash Memory Installed (Max) 8 MB Flash

Data Link Protocol IEEE 802.11b, IEEE 802.11g

Remote Management Protocol SNMP, Telnet, HTTP

Features Auto-sensing per device, DHCP support, power over Ethernet (PoE), BOOTP support, ARP support, VLAN support, manageable

OS Required Cisco IOS 12.2(13)JA or later

Power AC 120/230 V ( 50/60 Hz )

Manufacturer Warranty 90 days warranty

Details

General

Device Type Radio access point

Width 16.7 cm

Depth 18.4 cm

Height 4.2 cm

Weight 0.7 kg

Localisation Europe

Expansion / Connectivity

Expansion Slots Total (Free) 1 ( 0 ) x mini PCI

1 ( 1 ) x CardBus

Interfaces 1 x network - Radio-Ethernet - RP-TNC x 2

1 x network - Ethernet 10Base-T/100Base-TX - RJ-45

1 x management - console - RJ-45

Manufacturer Warranty

Service & Support 90 days warranty

Service & Support Details Limited warranty - 90 days

Networking

Form Factor External

Connectivity Technology Wireless

Data Transfer Rate 54 Mbps

Line Coding Format DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM

Data Link Protocol IEEE 802.11b, IEEE 802.11g

Spread Spectrum Method OFDM, DSSS

Remote Management Protocol SNMP, Telnet, HTTP

Frequency Band 2.4 GHz

Selectable Channels Qty 13

Status Indicators Status, alarm

Features Auto-sensing per device, DHCP support, power over Ethernet (PoE), BOOTP support, ARP support, VLAN support, manageable

Encryption Algorithm LEAP, 128-bit WEP, 40-bit WEP, TLS, PEAP, TTLS, TKIP, WPA

Authentication Method RADIUS, Radio Service Set ID (SSID)

Compliant Standards IEEE 802.3, IEEE 802.1p, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x

Miscellaneous

Mounting Kit Included

Compliant Standards FCC Class B certified, ETSI, VCCI, EN 60950, ICES-003, UL 1950, IEC 60950, CSA 22.2 No. 950

Power

Power Device Power adapter - external

Voltage Required AC 120/230 V ( 50/60 Hz )

Power Consumption Operational 6 Watt

Software / System Requirements

Software Included Drivers & Utilities

OS Required Cisco IOS 12.2(13)JA or later

Environmental Parameters

Min Operating Temperature -20 °C

Max Operating Temperature 55 °C

Humidity Range Operating 10 - 90%

Processor / Memory / Storage

Processors Installed 1 x IBM PowerPC 405 200 MHz

Max Supported Qty 1

RAM Installed ( Max ) 16 MB

Flash Memory Installed (Max) 8 MB Flash
