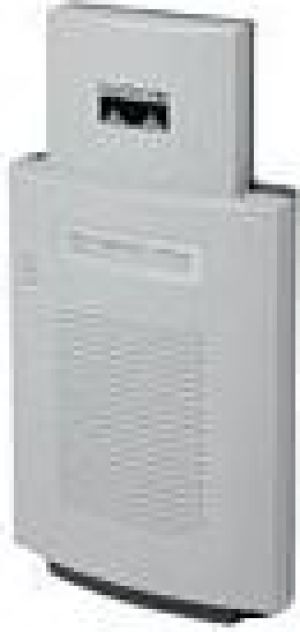

Access Point Cisco AIR-AP1121G-E-K9 1100 Series 54Mbps 802.11g Integrated A

Product Description Cisco Aironet 1100 - radio access point

Device Type Radio access point

Enclosure Type External

Dimensions (WxDxH) 10.4 cm x 3.8 cm x 20.5 cm

Weight 0.3 kg

Localisation Europe

RAM Installed ( Max ) 16 MB

Flash Memory Installed (Max) 8 MB Flash

Data Link Protocol IEEE 802.11b, IEEE 802.11g

Remote Management Protocol SNMP, Telnet, HTTP

Features DHCP support, BOOTP support, VLAN support, manageable

Power AC 120/230 V ( 50/60 Hz )

Manufacturer Warranty 1 year warranty

Details

General

Device Type Radio access point

Width 10.4 cm

Depth 3.8 cm

Height 20.5 cm

Weight 0.3 kg

Localisation Europe

Expansion / Connectivity

Interfaces 1 x network - Radio-Ethernet

1 x network - Ethernet 10Base-T/100Base-TX - RJ-45

Manufacturer Warranty

Service & Support 1 year warranty

Service & Support Details Limited warranty - 1 year

Networking

Form Factor External

Connectivity Technology Wireless

Data Transfer Rate 54 Mbps

Line Coding Format DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM

Data Link Protocol IEEE 802.11b, IEEE 802.11g

Spread Spectrum Method OFDM, DSSS

Remote Management Protocol SNMP, Telnet, HTTP

Frequency Band 2.4 GHz

Max Range Indoors 124 m

Max Range Open Space 610 m

Selectable Channels Qty 13

Status Indicators Port status, error

Features DHCP support, BOOTP support, VLAN support, manageable

Encryption Algorithm RC4, AES, 128-bit WEP, 40-bit WEP, TKIP, WPA

Authentication Method RADIUS

Compliant Standards IEEE 802.3, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i

Miscellaneous

Compliant Standards FCC Class B certified, EN 60950, ICES-003, UL 1950, IEC 60950, CSA 22.2 No. 950

Power

Power Device Power adapter - external

Voltage Required AC 120/230 V ( 50/60 Hz )

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90%

Processor / Memory / Storage

RAM Installed ( Max ) 16 MB

Flash Memory Installed (Max) 8 MB Flash

Aerial

Antenna Internal integrated
